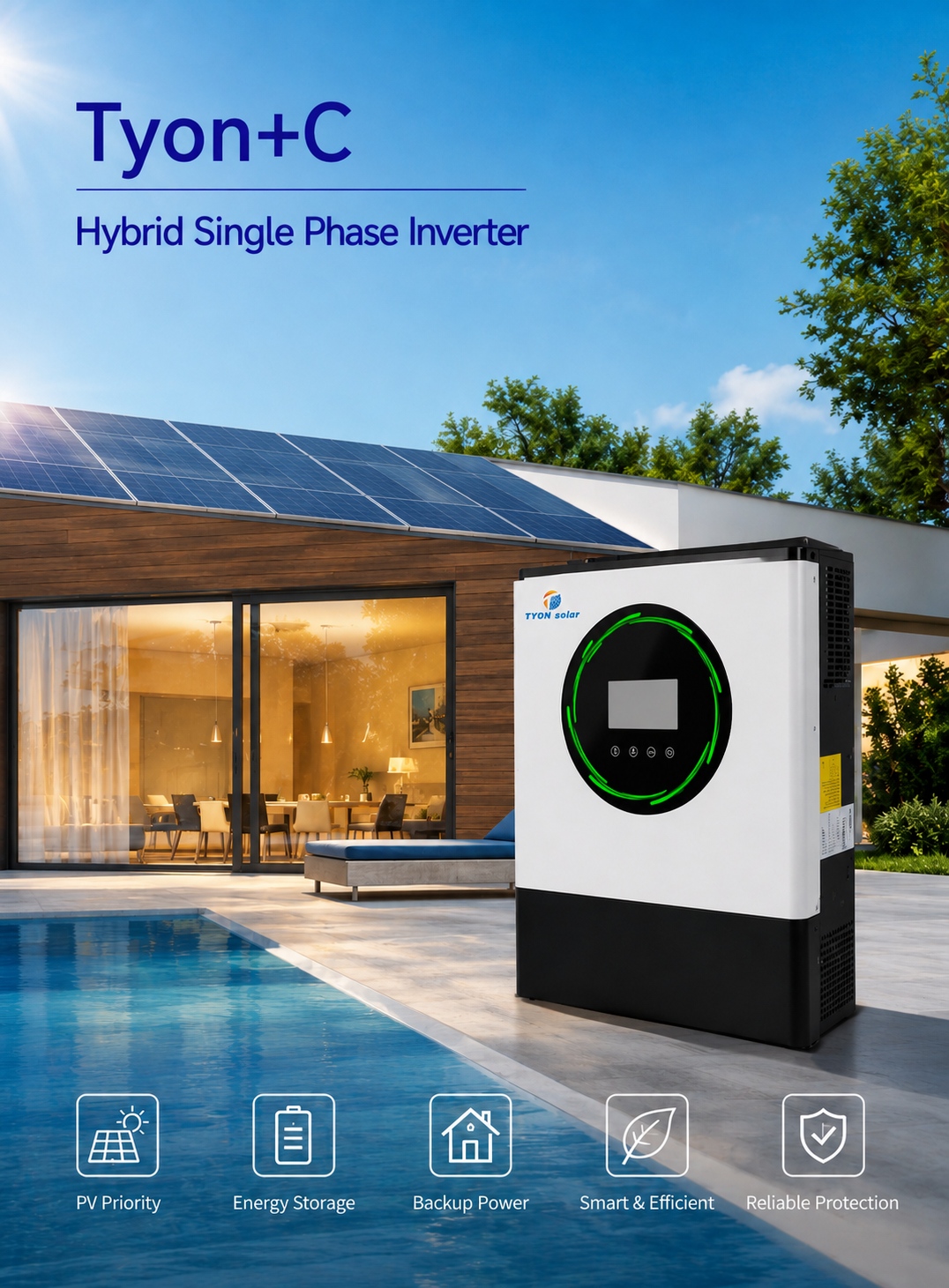

The Tyon+C series single‑phase hybrid energy‑storage inverter is custom‑designed for residential PV‑storage scenarios, offered in two mainstream power models: 8.2 kW and 11 kW. It integrates three core functions: MPPT PV control, storage charge‑discharge management and sine‑wave inverter output. Three operating modes are supported: grid‑tied, off‑grid and hybrid for genuine hybrid grid‑tied operation. The 11 kW variant supports linkage with an 11 kW generator. Up to 6 units can be paralleled for capacity expansion, suitable for PV‑storage systems in self‑built houses and villas. Two built‑in independent MPPT trackers deliver 40 A maximum per‑channel input current, with total maximum PV input power of 12000 W. MPPT voltage window: 90‑450 VDC. Peak DC conversion efficiency hits 96% and battery charge‑discharge efficiency reaches 93%. Its broad PV‑voltage compatibility supports diverse PV modules and maintains high‑efficiency generation under fluctuating irradiance. Compatible with multiple 48 V storage batteries including lead‑acid and lithium‑ion types. The integrated smart BMS enables precise communication with LFP (LifePO4) batteries. Both maximum PV charging current and AC‑DC charging current reach 150 A. It can operate with battery storage or drive loads directly from PV without batteries. Dual‑channel AC output meets multi‑load power‑supply demands for complete households. Comprehensive communication configurations include USB, RS232, RS485 and dry‑contact interfaces. Local WiFi and remote WiFi intelligent monitoring are supported. Equipped with touch‑sensitive LCD display and RGB status indicator lights, it delivers intuitive readout of operating data; remote parameter management is available via host PC and mobile devices. Stable electrical performance delivers standard 220 V / 230 V / 240 V sine‑wave AC output with power factor up to 0.9. It accepts wide‑range 120‑280 V mains input and automatically adapts to self‑start‑up voltage levels. Robust build quality. Operating temperature: ‑10℃‑50℃; storage temperature tolerance: ‑15℃‑60℃, well suited for large‑temperature‑difference regions such as Xinjiang. Passing rigorous production‑process inspections, it is directly supplied by local Xinjiang manufacturers. Custom complete residential solar‑system solutions are available upon request. It constitutes the ideal inverter for villa and self‑build‑house residential PV‑storage as well as off‑grid household power‑supply projects.
